1920-2170MHz/2300-2690MHz 300W RF Dual Band Combiner with 4.3-10 Female for IBS DAS BTS

This band combiner, covers frequency 1920-2170/2300-2690MHz for 5G, Low PIM, high isolation, low loss. It's easy for installation.

Item NO.:
MND-2100/2600-155-43
Product Orgin:
China
Brand:
Maniron
Shipping Port:
Shanghai/Shenzhen/Ningbo
Color:
Grey

Inquiry now

Products Details

Product Name

1920-2170MHz/2300-2690MHz RF Dual band combiner

Product Features

◆Compact, low weight

◆Low PIM

◆High reliability

◆Simple installation

Technical &Mechanical Specifications

Frequency range	1920-2170&2300-2600MHz
Insertion loss	≤0.42dB
VSWR	≤1.25
Connector type	4310-F
Isolation	≥40dB
Impedance(Ω)	50Ω
Colour	Grey
Operating Humidity	5%-95%
PIM(dBc)	≤-155@2*43dBm
DC/AISG By pass	By pass availabe, 40V/3A
Operating Temperature	-20 to 60ºC
Application	Outdoor
Mounting	Pole or Wall Mount
Waterproof grade	ip67

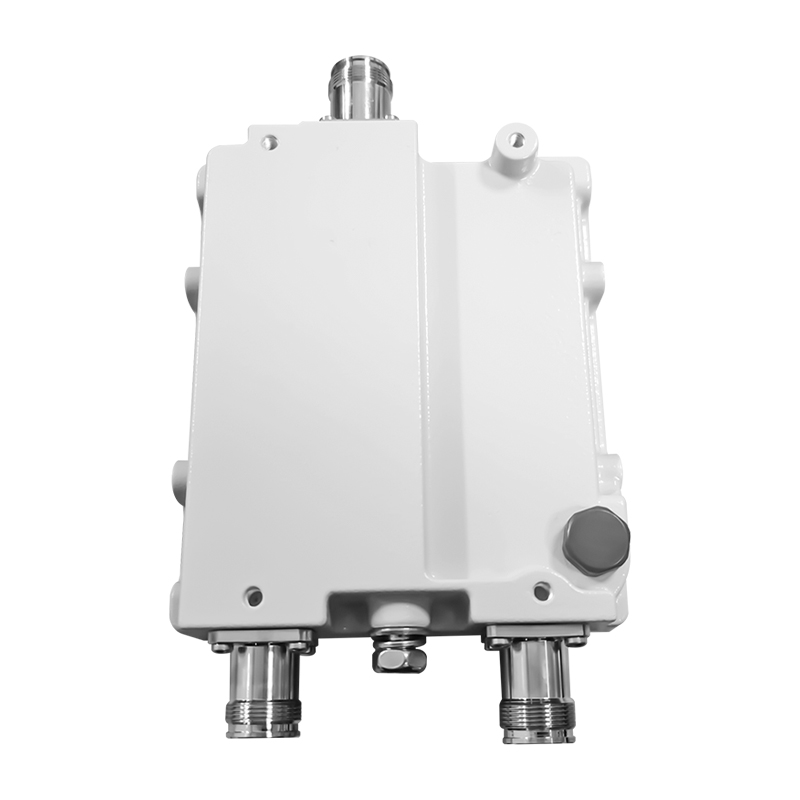

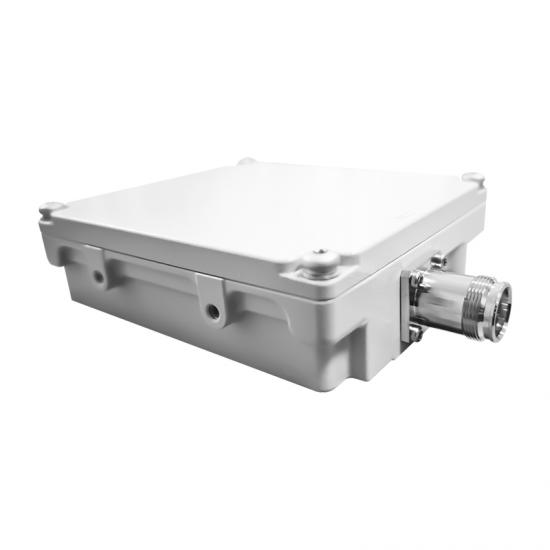

Product Pictures
