Product Name

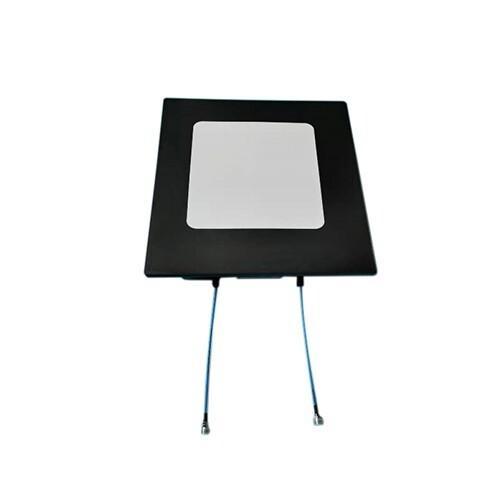

Maniron 1710-2675MHz 13dBi Cell Antennas
Product Features
◆ Wide Frequency Band 1710-2675MHz
◆ Low VSWR
◆ High Gain
◆ Widely used for DAS
Technical &Mechanical Specifications
| Frequency Range(MHz) | 1710～1830 | 1885～1915 | 2010～2025 | 2320～2370 | 2515～2675 | ||
| Gain(dBi) | ≥12.0 | ≥13.0 | ≥13.0 | ≥13.0 | ≥13.0 | ||
| Polarization(°) | ±45 | ±45 | ±45 | ±45 | ±45 | ||
| VAWR | ≤1.5 | ||||||

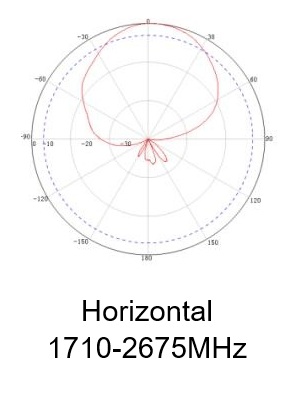

| Horizontal Beam width(°) | 20，35 | 20，35 | 20，35 | 15，35 | 15，35 | ||

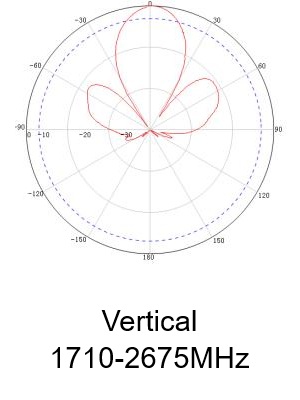

| Vertical Beam width(°) | ≥60 | ≥60 | ≥60 | ≥60 | ≥60 | ||
| Isolation（dB） | ≥25 | ≥25 | ≥25 | ≥25 | ≥25 | ||
| Front-to-back ratio(dB) | ≥23 | ≥23 | ≥23 | ≥23 | ≥23 | ||
|
PIM (dBm，@2×37dBm) |
≤-107 | / | / | / | / | ||
|
Vertical plane 3dB beamwidth cross-polarization ratio （dB） |
≥10 | ≥10 | ≥10 | ≥10 | ≥10 | ||
|
Horizontal plane 3dB beamwidth cross-polarization ratio （dB） |
≥10 | ≥10 | ≥10 | ≥10 | ≥10 | ||
| Power（W | ≥50 | ≥50 | ≥50 | ≥50 | ≥50 | ||
| Impedance(Ω) | 50 | ||||||

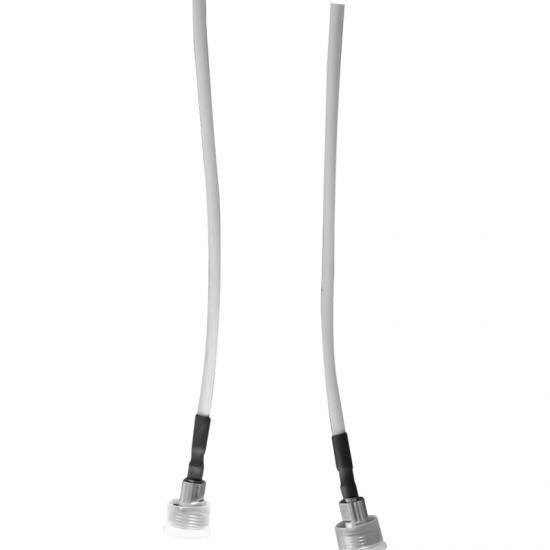

| Connector Type | 2-Female | ||||||
Application
